200m / Min Fiber Optic Manufacturing Equipment , FTTH Cable Production Machines

Name: 200m Min Fiber Optic Manufacturing Equipment FTTH Cable Production Machines
Brand: HERRMAN
Price: 1 USD

Quality 200m / Min Fiber Optic Manufacturing Equipment , FTTH Cable Production Machines wholesale

Brand Name : HERRMAN

Model Number : SJ50

Certification : ISO9001:2015,CE

Place of Origin : China

MOQ : 1set

Price : By Negotiation

Payment Terms : L/C, T/T, D/A, D/P，By Negotiation

Supply Ability : 15 sets per month

Delivery Time : 55 working days

Packaging Details : by ply-wooden case suitable for export

Name : FTTH Cable Production Line

Function : Cable Making

Material : LSZH or PE

Size of FRP reel : PN235 ,PN400,PN500

Line speed : 200mpm

Size of take-up reel : PN400～PN800

optic-fiber dia. : Φ0.25±0.05mm

HS code : 8479400000

Color : Customized

Motor : SIEMENS

Bearing : NSK

Warranty : 12 months

Contact Now

200m / Min Fiber Optic Manufacturing Equipment , FTTH Cable Production Machines

Description

The FTTH Cable Production Line is mainly used to produce 1-4 fibers FTTH cable. The material: LSZH or PE.

Line configuration

1 Optical fiber pay-off unit

2 Direction control

3 Fiber coloring and material supply system

4 UV Curing Oven

5 Capstan and counter unit

6 Take-up and traversing unit

7 Button station

8 Release static system

9 Electric control system and software

10 Air Fan

Main Specification

optic-fiber dia.	Φ0.25±0.05mm
Size of FTTH cable	2.0*3.0mm ±0.2mm
Size of FTTH cable	2.0*5.0mm±0.2mm 2.5×6.9mm±0.2mm
Line speed	200m/min (structure)
Size of fiber pay-off reel	Φ236×Φ25,4×108 Φ265×Φ25,4×180
Size of take-up reel	PN400～PN800
Size of wire reel	PN400～PN800
Size of FRP reel	PN235 ,PN400,PN500

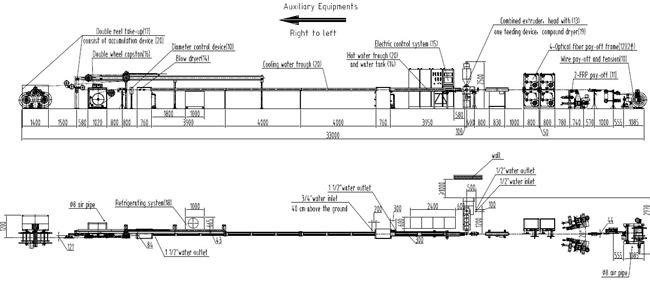

Drawing for reference
