Cradle type laying up machine for control cable
1. Application
Cradle type laying up machine for control cable is mainly used in insulated wire, rubber insulated wire, XLPE insulated wire, The outer layer has taping or shielded braided layer. The operation and control of the whole machine is carried out through the electric control console desk which close to the stranding cage and the electrical control desk on the take-up and traverse stand . In order to facilitate operation and safe production, mushroom head shaped buttons are set at corresponding operation locations, so as to stop the vehicle in time when necessary. The machine starts and stops smoothly, and the operation and maintenance are simple and convenient.
2. Main technical specification
| Max. diameter of single wire | Ф5mm～Ф35mm |
| Rotating speed of cage | 35rpm |
| Laying-up pitch | 80-2000 mm |
| Caterpillar linear speed | 30m/min |
| Max. pulling force | 2000kg |
| Pay-off reel size in cage | PN1200mm |
| Take-up reel size | PN1600～PN2800mm |
| Motor power |
| Stranding cage motor | 75KW(AC) |
| Transmission motor | 37KW(AC) |
| Central height | 1000mm |
3.Main components
6B stranding cage 1SET
wire die holder 1SET
# type wire guiding stand 1SET
2000kg flat belt caterpillar 1SET
wire supporting stand 1SET
Taping machine 2SETS
Meter counter 1SET
Ф2800 Column type take-up stand with traverse 1SET
Ф2500 Column type pay-off stand 1SET
transmission system 1SET
electric control system 1SET
4.Mechanical and electrical components
4.1 Main motors are from SIEMENS.
4.2 All the bearings are from Chinese famous brand.
4.3 All of the low-voltage electric elements are from Schneider.
4.4 PLC is from SIEMENSE
4.5 AC inverter is from SIEMENS.
4.6 Pneumatic elements are from AIRTAC
Note:(The product name of specific parts is mainly based on customer requirements)

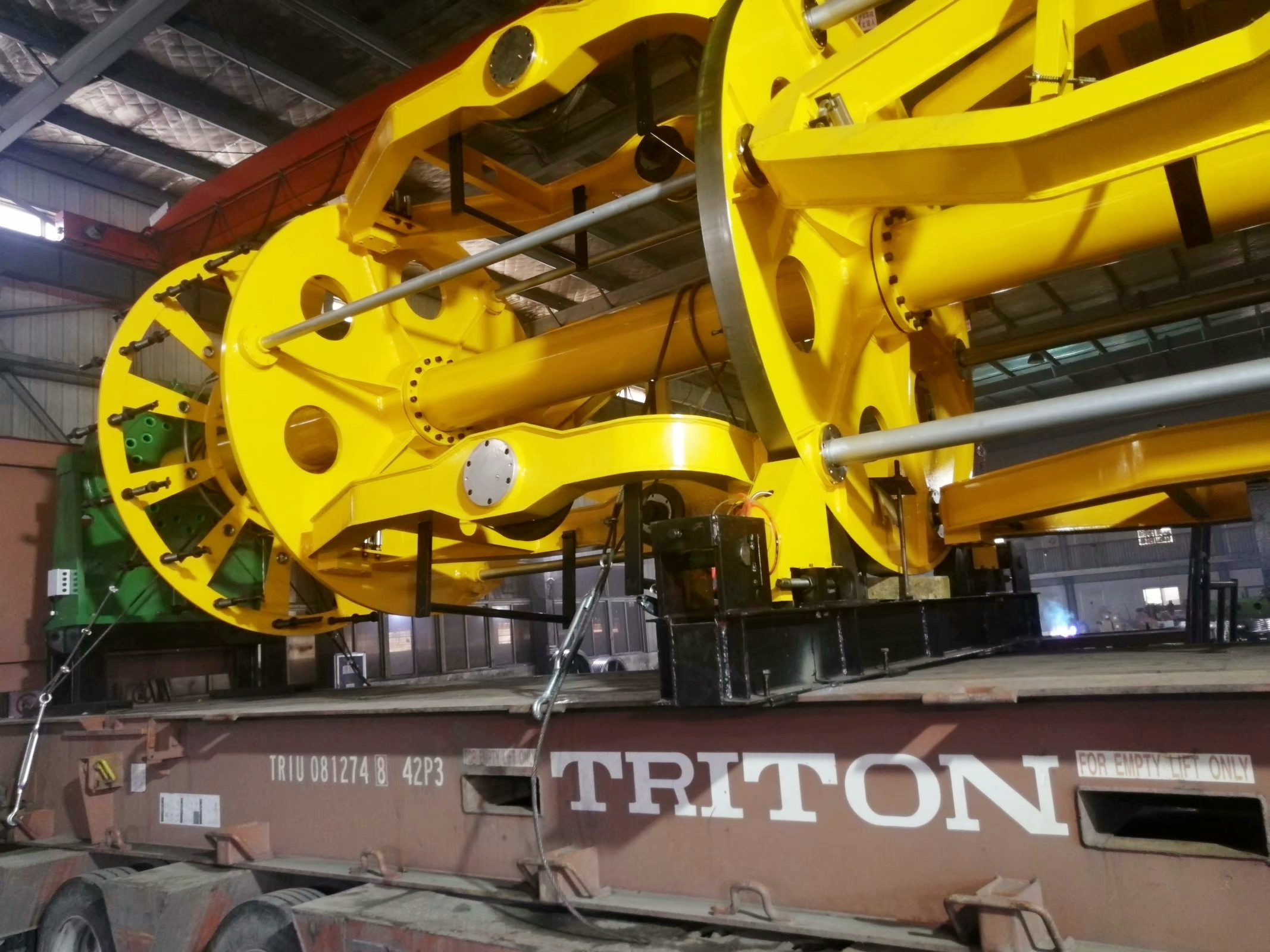

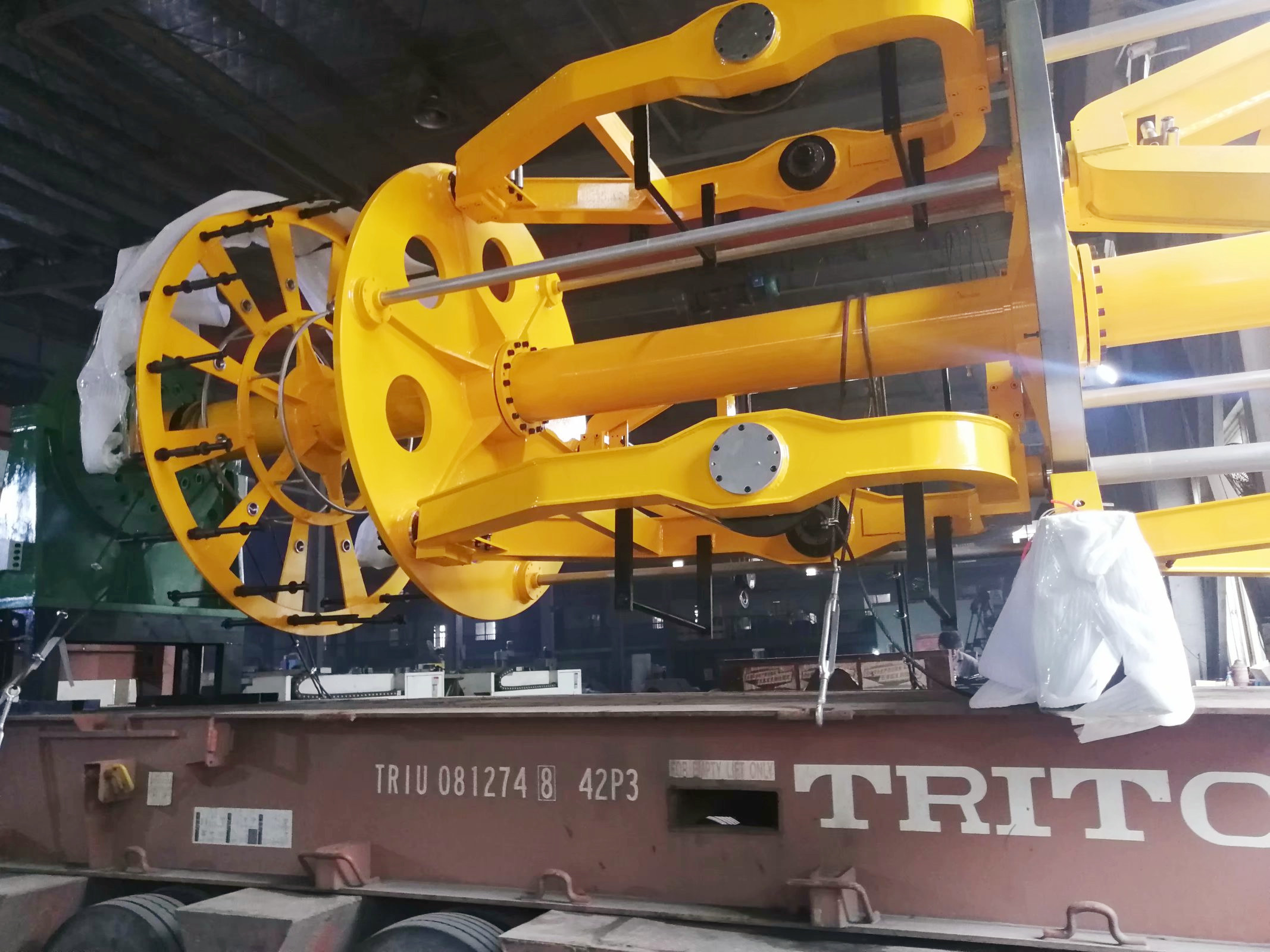

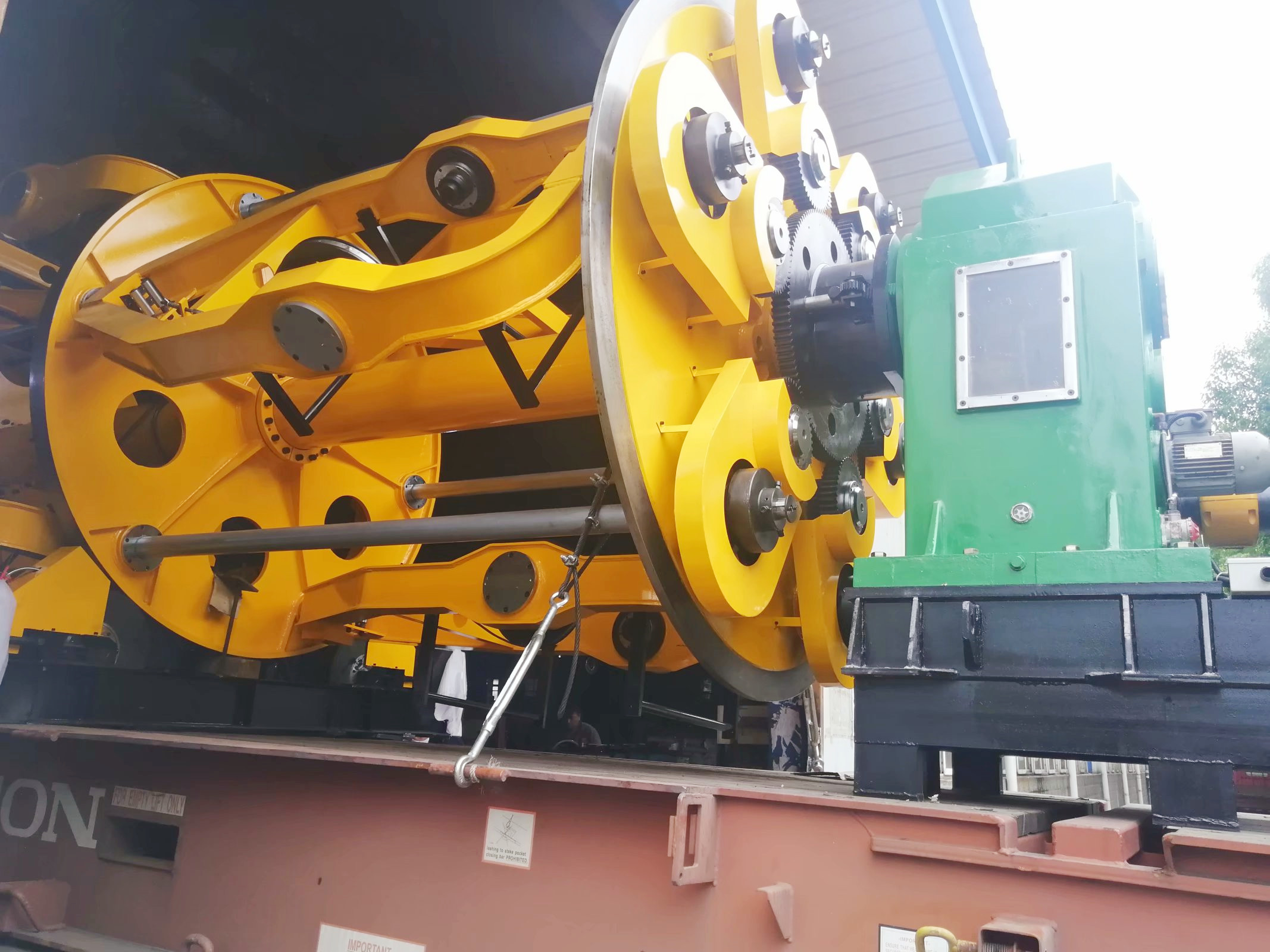

5.Photos

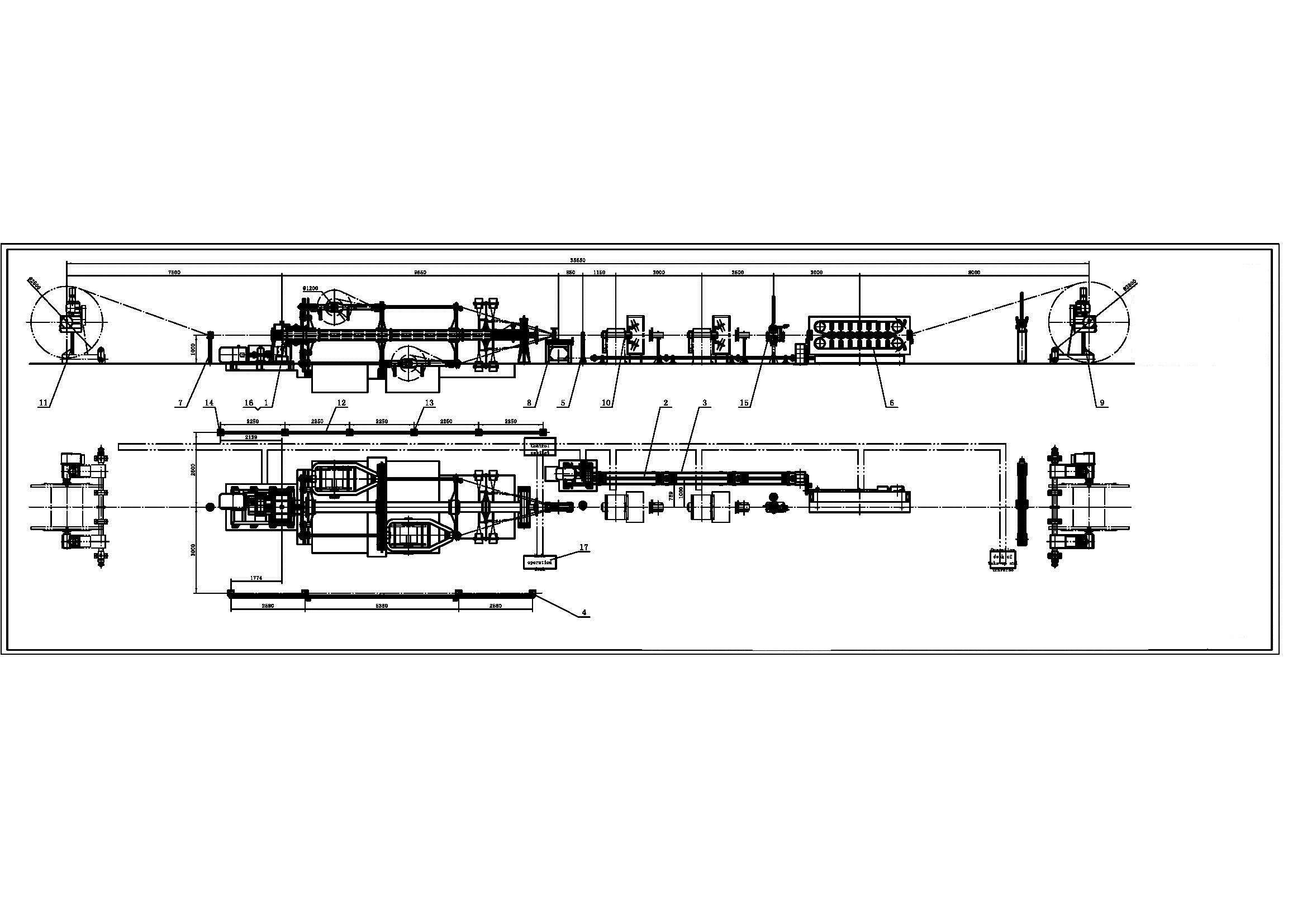

6.Relevant drawing
